STM32F411 BlackPill Development Board

SKU: HMJ042 Category: Microcontrollers
KSH 1,200.00
In Stock
Inquire
Product Description

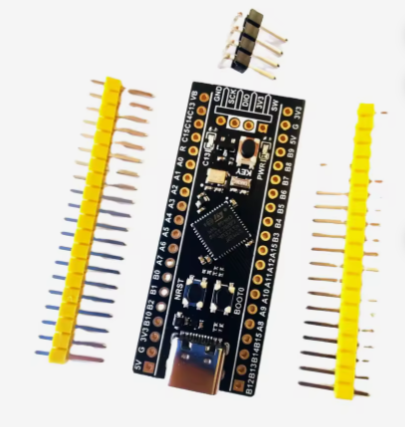

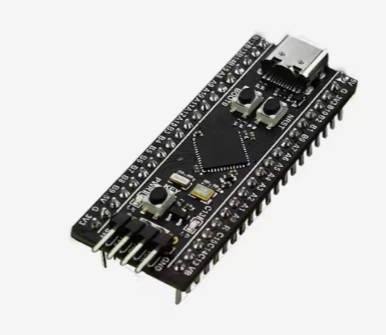

STM32F411 BlackPill Development Board

= HighPerformance ARM CortexM4 Development Board =

The BlackPill is a compact and affordable development board featuring the STM32F411CEU6 microcontroller. It offers significant performance improvements over the older "Blue Pill", including a faster core and more memory, making it ideal for complex embedded and IoT projects .

HighPerformance CortexM4 100MHz ARM CortexM4 core with Floating Point Unit
Generous Memory - 512KB Flash and 128KB SRAM for demanding applications
Powered via USB Type-C or 3.3V pin, with a 3.3V 100mA LDO regulator on board.
Use the DFU bootloader via the USB Type-C port for programming; no external programmer is needed.
Note that the same GPIO pin can have multiple functions; check the datasheet for multiplexing details.

= Technical Specifications =

ParameterValue
ProcessorSTM32F411CEU6 ARM Cortex-M4 with FPU
Clock Speed100MHz
Flash Memory512KB
SRAM128KB

= Board Features =

USB TypeC Port Modern connector for power and programming .

Programmable Buttons - Includes RESET, BOOT0, and a user button on PA0 .

Multiple Communication Interfaces - Supports UART, I2C, SPI, I2S, and USB .

Option for SPI Flash - Solder pads for external memory expansion .

Onboard LEDs Power and usercontrollable LED .

== Common Applications ==

  1. Robotics and motor control projects
  2. Data acquisition systems
  3. Advanced IoT and automation nodes
  4. Custom keyboard and HID devices
Powerful and Affordable A highly capable MCU at a budgetfriendly cost.
Rich Ecosystem Supports Arduino (via STM32duino), MicroPython, CircuitPython, and baremetal development .

√ Small, breadboard-friendly footprint.

√ Compatible with popular Mbed OS and Zephyr OS .
