68nF Multilayer Ceramic Capacitor (MLCC)
= Versatile 68nF Capacitor for Filtering and Decoupling Applications =
The 68nF (0.068µF) Multilayer Ceramic Capacitor is a midrange capacitance value ideal for decoupling, filtering, and smoothing applications. Available in both throughhole and surfacemount packages, this capacitor offers stable performance across a wide temperature range with low ESR for highfrequency circuits.

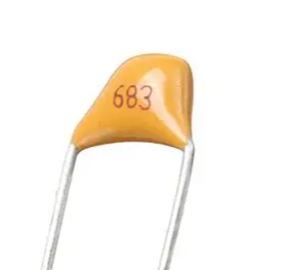

Capacitance value: 68nF = 0.068µF = 68,000pF (marked as "683" on the component)
Commonly used for power supply decoupling, noise suppression, and filtering circuits
Do not exceed the rated voltage voltage derating is recommended for reliable longterm operation
MLCCs can exhibit capacitance reduction under DC bias - refer to manufacturer datasheets for derating curves
= Common Specifications =
The 68nF MLCC is available in multiple package sizes and voltage ratings to suit different applications:
| Parameter | Common Variants |
|---|
| Capacitance | 68nF (±5% to ±10%) |
| Voltage Rating | 16V, 50V, 100V, 250V DC |
| Dielectric | X7R (temperature stable), NP0/C0G (high stability), X5R (general-purpose) |
| Temperature Range | -55°C to +125°C |
| Package (SMD) | 0402, 0603, 0805, 1206, 1812 |
| Package (Through-Hole) | Radial (CK05 Series) |
= Key Features =
Versatile Value - 68nF bridges standard 47nF and 100nF values for custom filtering
Wide Voltage Options - Available from 16V to 250V DC for various applications
Multiple Dielectric Options - Choose X7R for temperature stability, C0G/NP0 for high precision
Compact SMD Packages Available in 0402 to 1812 sizes for highdensity PCB designs
NonPolarized Easy assembly with no polarity concerns
== Applications ==
- Power supply decoupling for ICs and microcontrollers
- Bypass filtering on voltage regulator inputs and outputs
- Noise suppression on data and signal lines
- Timing circuits (RC oscillators and delay networks)
- EMI/RFI filtering at circuit inputs and outputs
- Sensor signal conditioning
- Class 1 automotive applications (NP0/C0G variants)
Industry Standard Value 68nF is a popular midrange capacitance value for filtering
Versatile Package Options Available in throughhole and SMD packages
√ Ready to use - no polarity for easy assembly
√ Stable performance over a wide temperature range (X7R/X5R grades)
√ Excellent high-frequency characteristics for clean power delivery
= Package Includes =
Varies by seller - typically available in:
- Tape and reel (SMD) - quantities from 100 to 10,000+ pieces
- Bulk packs (throughhole) quantities from 10 to 1,000+ pieces
- Cut tape / loose pieces for prototyping
For general-purpose decoupling, a 68nF X7R 50V capacitor in 0603 or 0805 package is a popular choice
The 683 marking indicates 68nF - first two digits are significant, third is multiplier (68 x 10³ = 68,000pF)
For high-reliability applications, select NP0/C0G dielectric for ±30ppm/°C temperature stability and ±5% tolerance
This capacitor is ideal for fine-tuning filter circuits where 47nF is too low and 100nF is too high
For hightemperature automotive applications, select AECQ200 rated variants
Avoid using highK dielectrics (X5R, X7R) in precision timing circuits - capacitance varies with DC bias and temperature
Avoid exceeding rated voltage for 50V rated parts, recommended operating voltage is typically ≤40V
Avoid placing decoupling capacitors too far from ICs increased trace inductance reduces effectiveness at high frequencies
