RP2040-Pi Zero Development Board

SKU: HMJ504 Category: Microcontrollers
KSH 2,500.00
Out of Stock
Inquire
Product Description

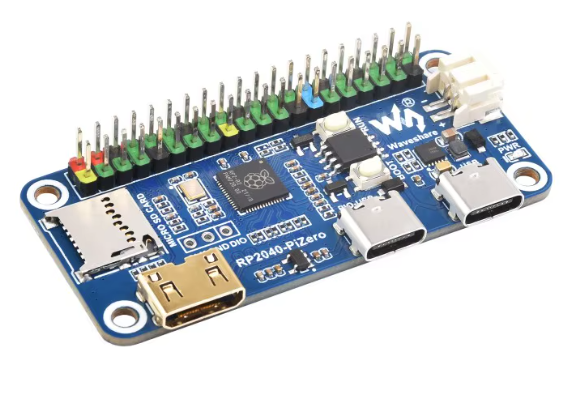

RP2040-PiZero Development Board

= Versatile RP2040 Board with DVI Output and Raspberry Pi Zero Form Factor =

The RP2040PiZero is a highperformance, costeffective microcontroller board designed by Waveshare . Based on the Raspberry Pi RP2040 dualcore processor, it features a 16MB Flash and 264KB SRAM, and adopts the popular Raspberry Pi Zero form factor .

RP2040 DualCore Processor 133MHz ARM Cortex M0+ with 264KB SRAM
16MB Onboard Flash - Large storage capacity for complex firmware
Operating voltage is 3.3V for logic, with 5V input via USB-C
Use the 40-pin GPIO header for compatibility with some Raspberry Pi HATs
DVI and PIO-USB functions are only supported in C/C++ environment and cannot be used simultaneously

= Technical Specifications =

ParameterValue
ProcessorRP2040 Dual-Core ARM Cortex M0+
Clock SpeedUp to 133MHz
SRAM264KB
Flash Memory16MB
GPIO40-pin (compatible with Raspberry Pi Zero)
Video OutputDVI via Mini HDMI port
USBTypeC (data) + PIOUSB port

= Key Features =

DVI Video Output - Drives HDMI screens via onboard Mini HDMI port

PIOUSB Support Acts as USB host or slave using PIO

Micro SD Card Slot - Expandable storage via SPI interface

LiPo Battery Support - Onboard PH2.0 connector for 3.7V lithium batteries with charging circuit

40Pin GPIO Header Compatible with some Raspberry Pi HATs

USBC Connectivity Modern port for power and draganddrop programming

== Applications ==

  1. DIY video output and display projects
  2. Portable and battery-powered devices
  3. USB host applications (keyboards, mice)
  4. Data logging with Micro SD storage
  5. Custom HAT and expansion board development
CostEffective Alternative RP2040 performance with Raspberry Pi Zero form factor
Versatile Interfaces - DVI, USB, SD card, and battery support in one board

√ Compatible with C/C++, MicroPython, and Arduino

√ USB mass storage for draganddrop programming

√ Waveshare provides comprehensive SDK and tutorials

= Programming Environment =

Supports multiple development environments including C/C SDK, MicroPython, and Arduino IDE . For DVI and PIO-USB functionality, C/C environment is required .

Note: The DVI interface and PIO-USB port are powerful additions but are mutually exclusive in use and require C language programming .

= Troubleshooting =

No display output:

  • Ensure HDMI screen is DVI-compatible
  • Use C/C++ environment for DVI functionality
  • Check Mini HDMI cable connection

USB device not detected:

  • Verify PIO-USB firmware is correctly configured
  • Ensure C/C++ environment is used
  • Check power supply to connected device
