Arduino Super Mini Nano V3 Atmega328P Microcontroller Core Board Soldering Development Board Improved Version Module

SKU: HMJ136 Category: Microcontrollers
KSH 900.00
In Stock
Inquire
Product Description

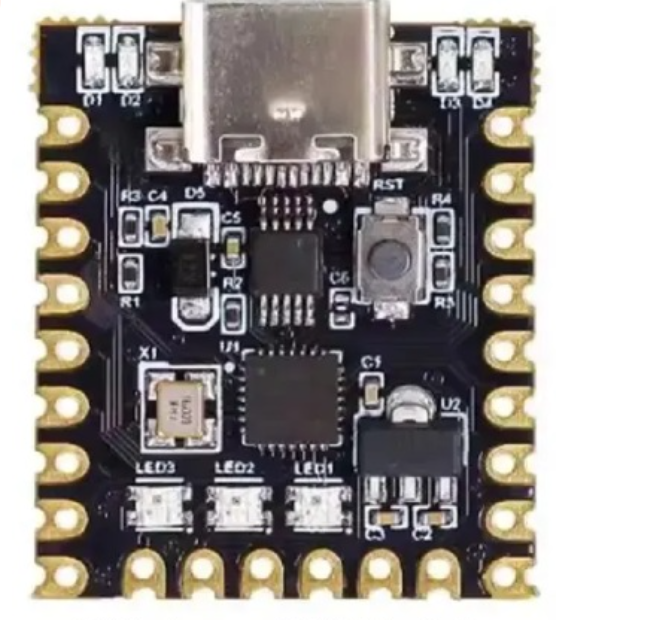

Arduino Super Mini Nano V3 ATmega328P Development Board

= Compact Improved Version Microcontroller Core Module =

This Super Mini Nano V3 board is a compact, breadboardfriendly development board based on the ATmega328P microcontroller . It delivers the same powerful functionality as the larger Arduino boards in a spacesaving design, ideal for embedding in projects or prototyping on a breadboard .

Compact and BreadboardFriendly Ideal for space-constrained projects and permanent embedding.
ATmega328P Core Reliable 8bit AVR microcontroller running at 16MHz.
Board features a CH340G USBtoserial chip for easy programming and communication .
Select "Arduino Nano" board and "ATmega328P" processor in the Arduino IDE .
I/O pins operate at 5V logic level - use level shifters for 3.3V devices.

= Technical Specifications =

ParameterValue
MicrocontrollerATmega328P
Clock Speed16MHz
Operating Voltage5V
Input Voltage (recommended)7-12V
Digital I/O Pins14 (6 with PWM)
Analog Input Pins8 (A0-A7)
Flash Memory32KB (2KB bootloader)
SRAM2KB
EEPROM1KB
DC Current per I/O Pin40mA

= Key Features =

+Super Mini Footprint - Significantly smaller than standard Nano boards .

+Improved USB Chip - Uses CH340G for better compatibility and stability .

+USBC Connectivity Modern reversible connector option available on many super mini versions .

+BreadboardFriendly Standard 2.54mm pin spacing for easy prototyping .

+8 Analog Inputs Includes two extra analogonly pins (A6 and A7) .

== Applications ==

  1. Compact Arduino prototyping
  2. Wearable electronics
  3. Robotics and automation
  4. Sensor data acquisition
  5. Permanent project embedding
Full Arduino Compatibility - Works with standard libraries and sketches .
Versatile Power Options USB, 5V pin, or 712V via VIN .

√ ATmega328P with Arduino bootloader pre-installed .

√ Includes pin headers (soldered or unsoldered depending on version).

√ Popular platform with extensive community support.

= Troubleshooting =

Board not detected:

  • Install CH340G USB driver if not automatically recognized .
  • Use a data-capable USB cable (not just charging cable) .
  • Try a different USB port.

Upload fails:

  • Select Tools → Board → Arduino Nano.
  • Select Tools → Processor → ATmega328P (or Old Bootloader for some clones) .
  • Check correct COM port selection.
